Pickup Dimensions

Feel free to check dimensions of our pickups. They're industry standard sizes and will fit most guitars. It's always better to check before purchase to guarantee a smooth install. Cheers, Ben.

J-90 Dimensions

S-Style - Single coil dimensions

All JJ's Single Coil S-Style pickups are industry standard 52mm magnet spaced, on-centre. They will fit most popular guitars (USA/MIM/MIJ etc).

T-Style - Bridge Pickup Dimensions

All JJ's T-Style Bridge pickups use an industry standard TE bolt pattern in the copper-plated steel baseplate. Magnet spacing, on-centre is 53.9mm to suit most USA width Bridges. Each Bridge pickup is string wrapped and wax potted to prevent microphonics.

T-Style - Neck Pickup Dimensions

JJ's T-Style Neck Pickups are available in Raw Nickel or German Silver Nickel covers. The covers are grounded to the pickup. Please check dimensions against your pickguard to ensure a JJ's pickup will fit your guitar.

Humbucker Bridge (52mm Metric from USA)

Bridge version	Body Width	68.6 mm
	Item Depth	22.4 mm
	Item Length	84 mm
	Item Width	36.5 mm
	Mounting Bracket Width	12.7 mm
	Mounting Hole Center to Center	78 mm
	Mounting Hole Threading	3-48
	Pole Spacing Center to Center	52.8 mm

Humbucker Neck (50mm Metric from USA)

Neck version	Body Width	67 mm
	Item Depth	23.4 mm
	Item Length	84 mm
	Item Width	36.5 mm
	Mounting Bracket Width	12.7 mm
	Mounting Hole Center to Center	78 mm
	Mounting Hole Threading	3-48
	Pole Spacing Center to Center	50 mm

S-90 Simulcaster dimensions

This pickup has the same dimensions as our typical Strat pickup, with the exception that it has a magnet, back-plate and two screws on the underside. Total height of this underside assembly is 6.2mm. This assembly does not stick out any further than the 3/4" pickup mounting bolts do. These pickups also run a lot closer to the string than a typical Alnico Strat pickup, so there is extra clearance under the pickup because of the required height setting. Please check your guitar for clearance before purchase.

dogear J-90 Dimensions

Our Dogear cover is 11mm tall and our string spacing is 50mm only. You will need to carry out the measurements to see if this pickup will fit your guitar and where necessary, seek shims or other arrangements to suit your particular guitar.

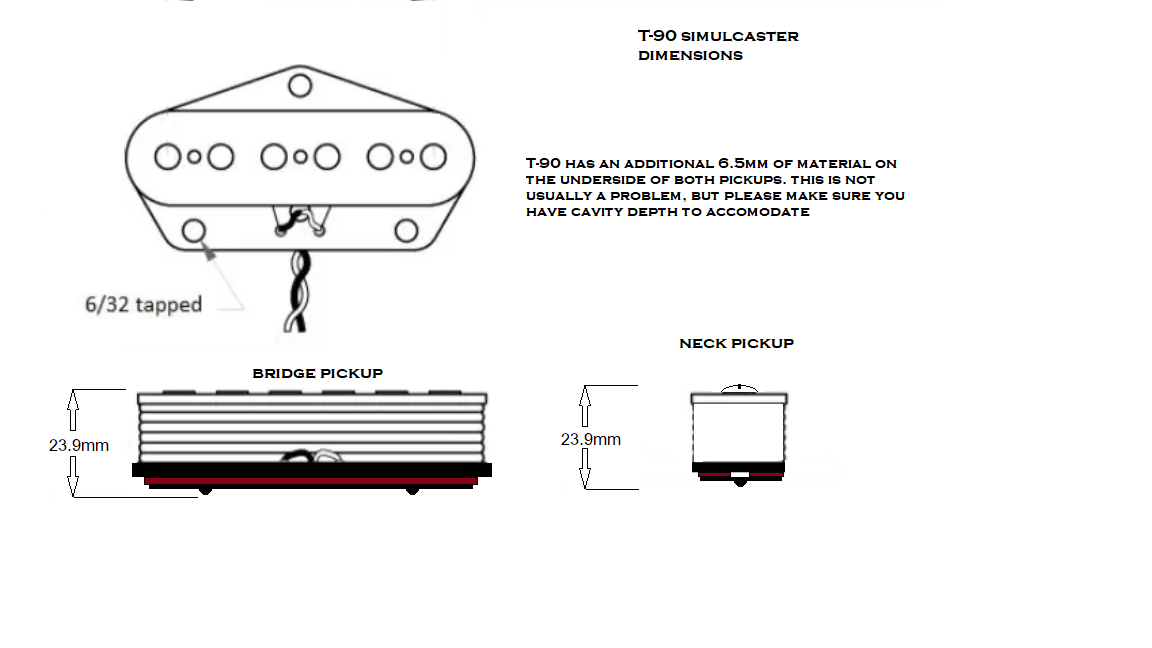

T-90 simulcaster dimensions

This pickup has the same dimensions as our typical Tele pickup, with the exception that it has a magnet, back-plate and two screws on the underside. Total height of this underside assembly is 6.5mm. These pickups also run a lot closer to the string than a typical Alnico Tele pickup, so there is extra clearance under the pickup because of the required height setting. Please check your guitar for clearance before purchase.
