Please get in touch here to order loaded pickguards.
Ordering is a simple two step process; 1 - selecting the correct bolt pattern and 2 - choose colours for your guitar.
Please scroll down for available pickguard colours and covers, all in stock now, ready to build.
Each pickguard includes knobs, switch tip, 3 X CTS Pots, 5 Way Switch, Orange Drop capacitor, all wired up with Gavitt cloth wire, ready for install.
SSS pickguards - $170
HSS pickguards - $180
step 1
1 - Please check your guitar against these pics to establish bolt pattern.
Feel free to attach a pic of your guitar on the contact form, we can check it for you.

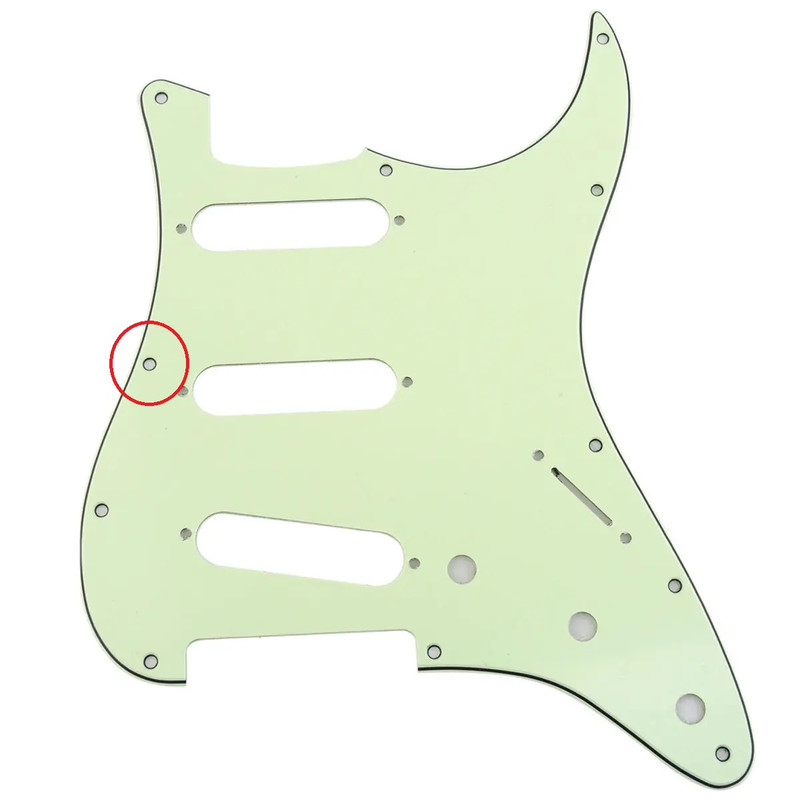

Modern 11 hole pickguard - the most common type. Note the screw placement circled in red.

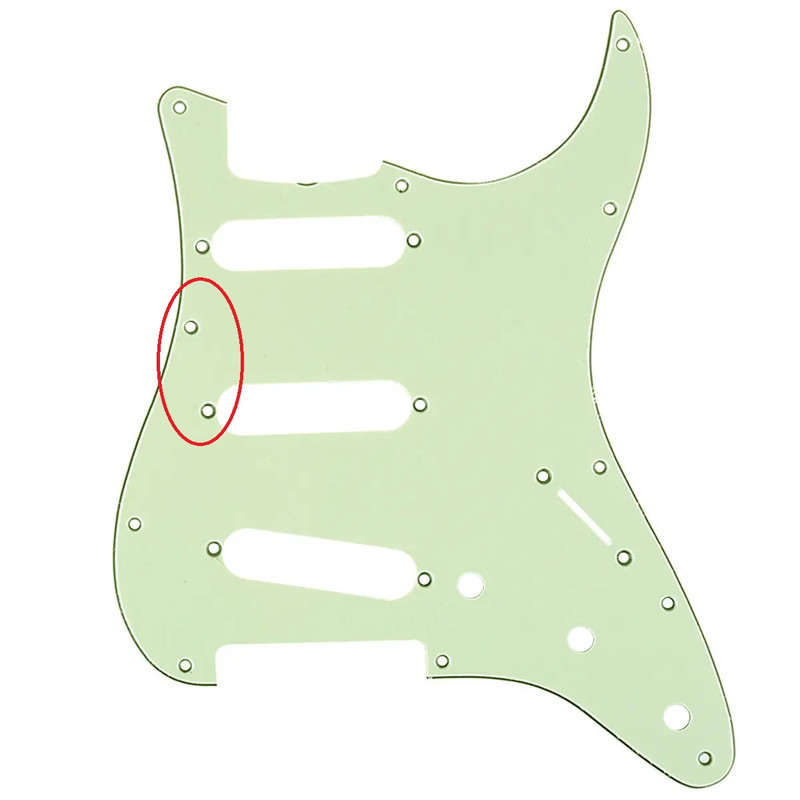

'62 pattern - the 2nd most common type. Note the screw placement circled in red.

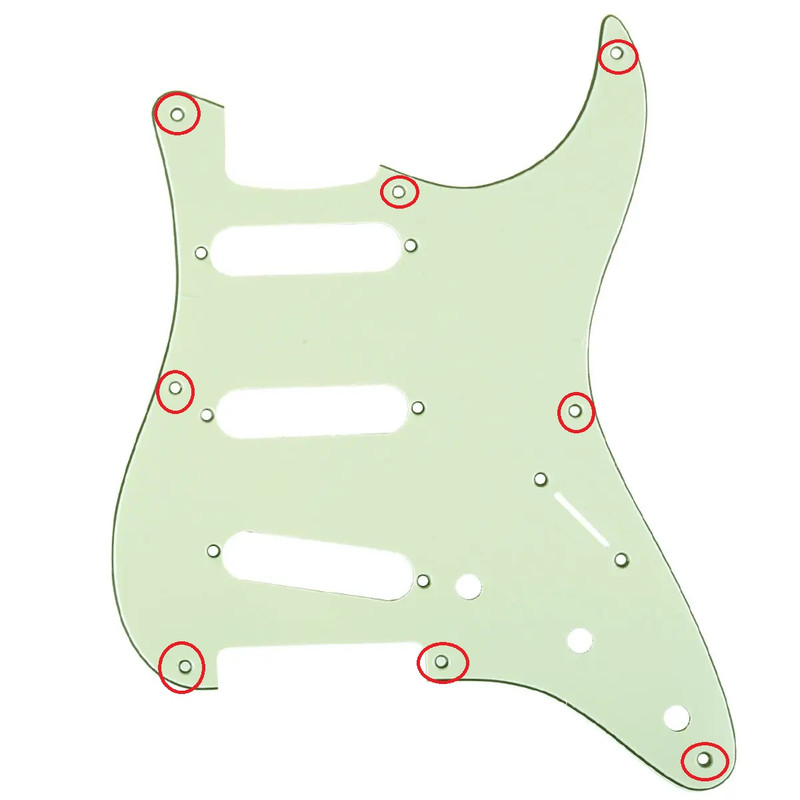

8 Hole - 50's pattern - the least common, identified by having only 8 mounting holes.
step 2
Contact us to place your order.
(If you don't see what you need here, you can send your pickguard in, order one to be sent directly to us for loading, or we can locate one for you through our suppliers at additional cost) If you're a lefty, please get in touch, it may take a little longer to order parts, but we can assist with your build.

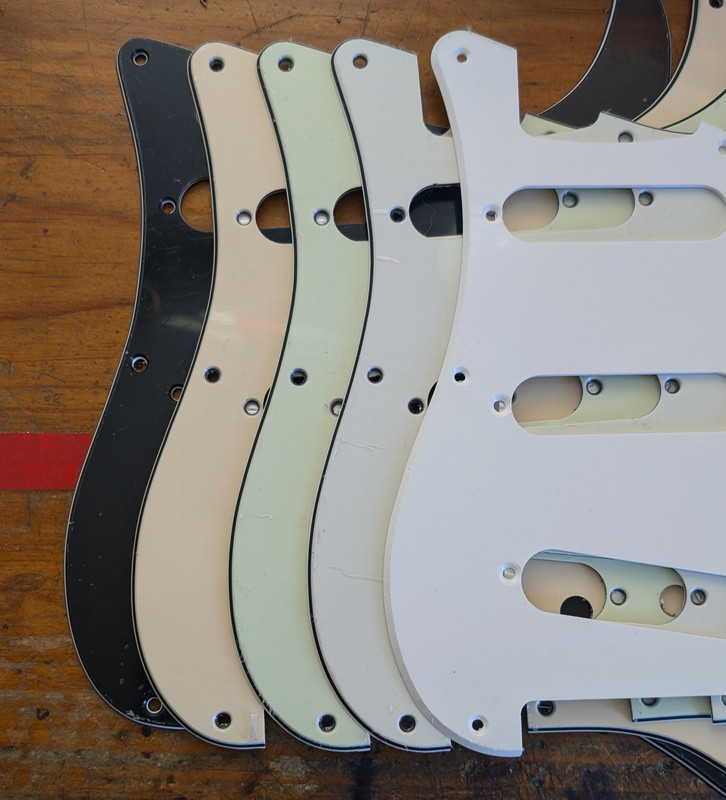

PICKGUARDS IN STOCK

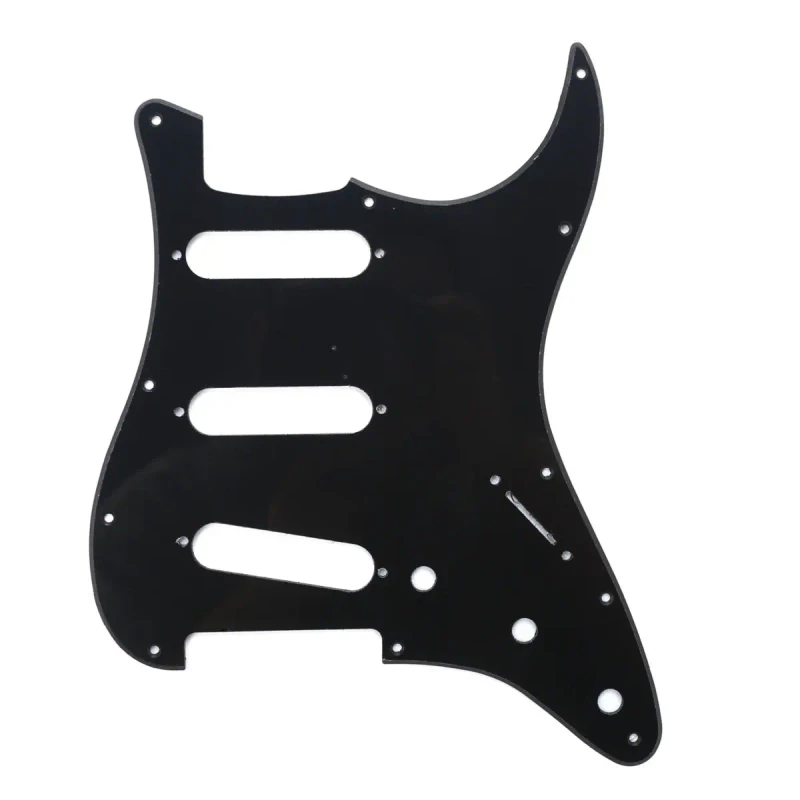

Black - Single Ply - Modern 11 Hole

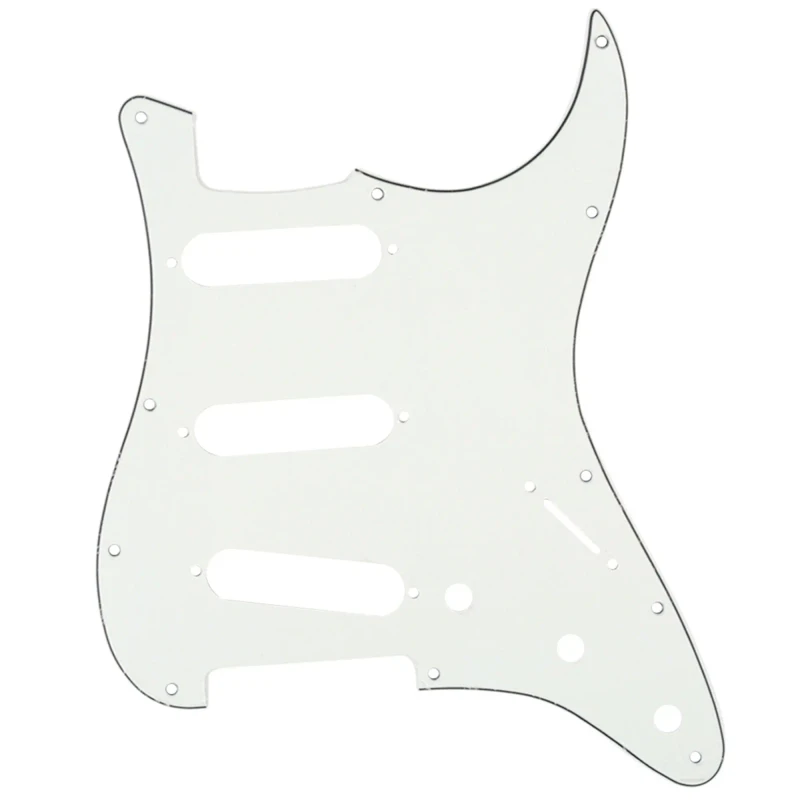

Aged White - 3 Ply - Modern 11 hole
White - Single Ply - Modern 11 hole

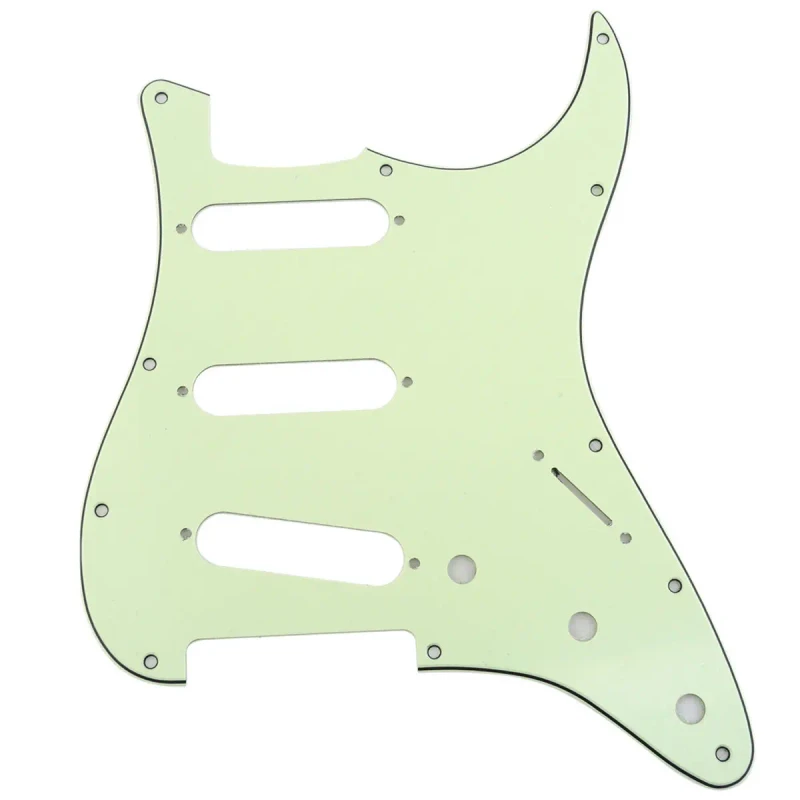

Mint Green - 3 Ply - Modern 11 hole

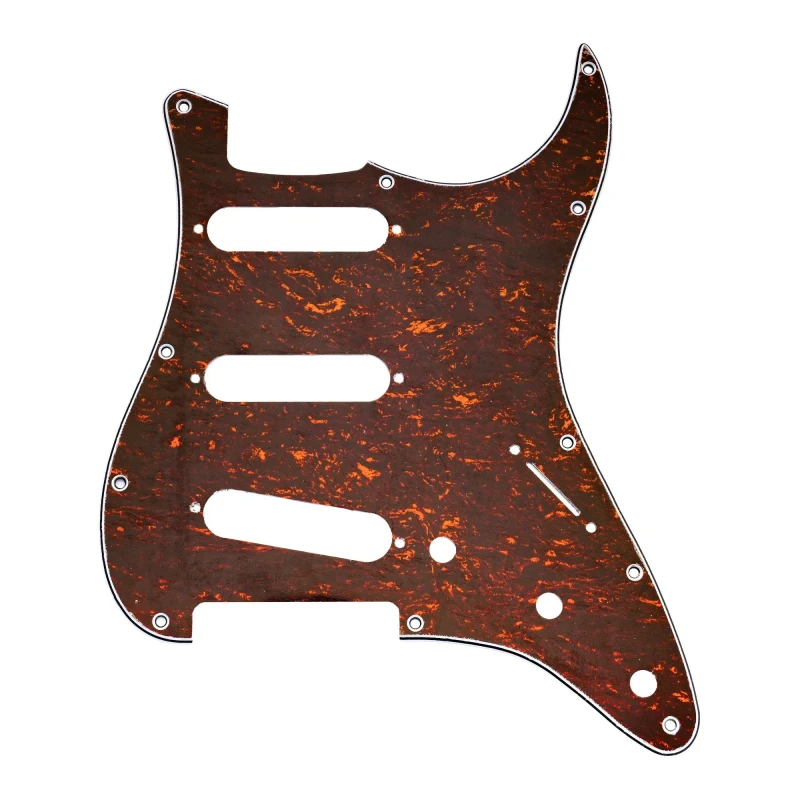

Tortoise Shell - 3 Ply - Modern 11 Hole

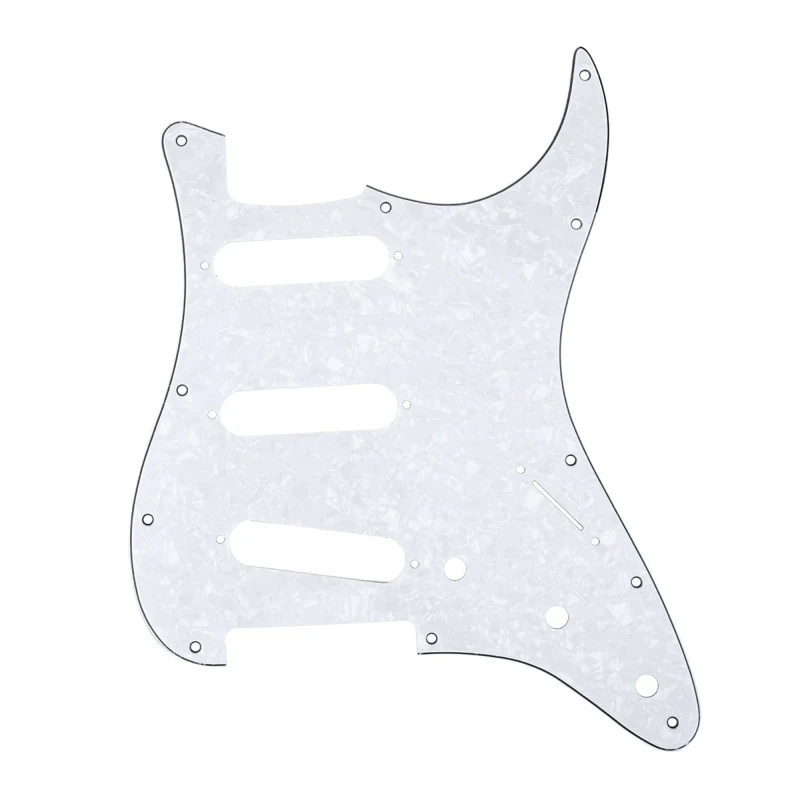

Pearloid - 3 Ply - Modern 11 Hole

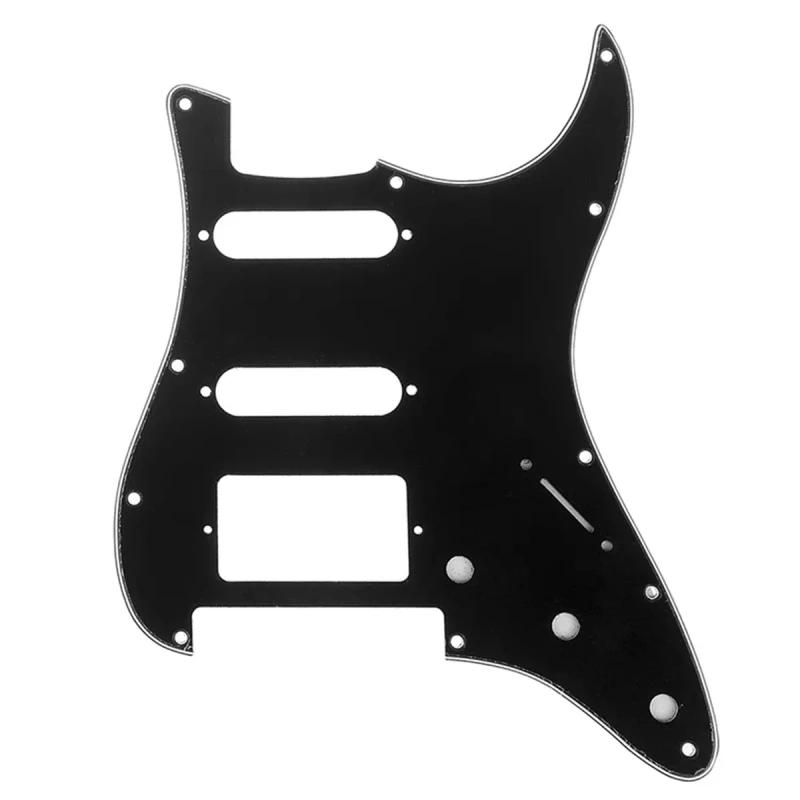

Black - HSS - Floyd Trem cut - Modern 11 Hole

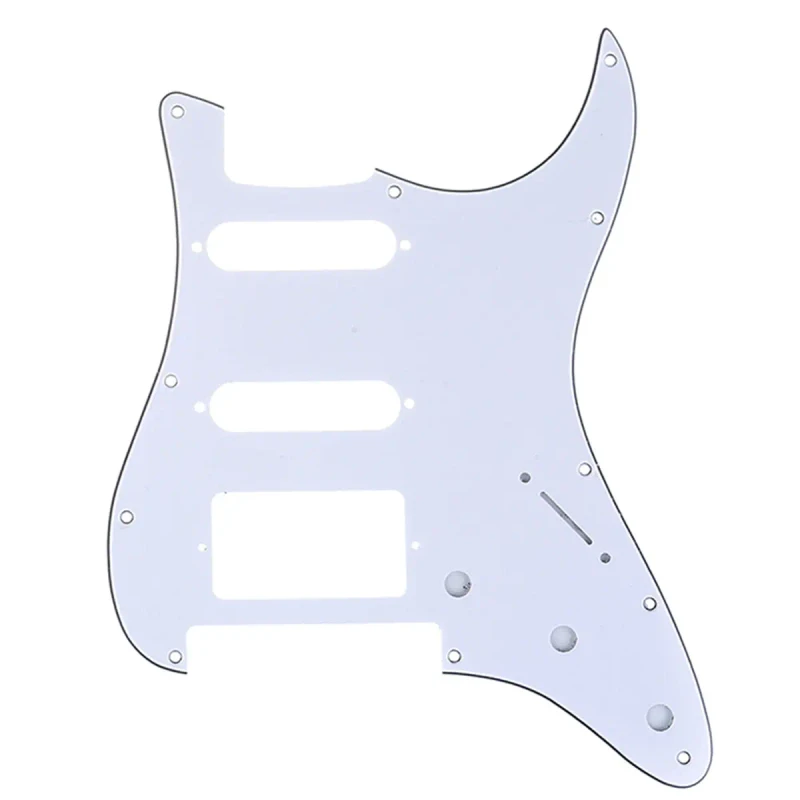

White - HSS - Floyd Trem cut - Modern 11 Hole

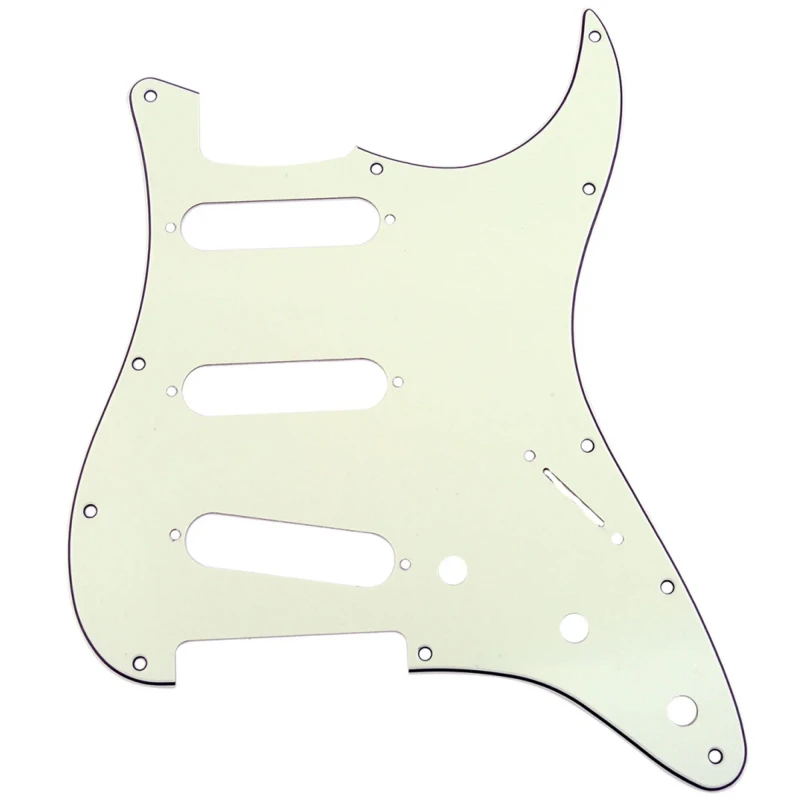

Light Mint Green - 3 Ply - Modern 11 Hole

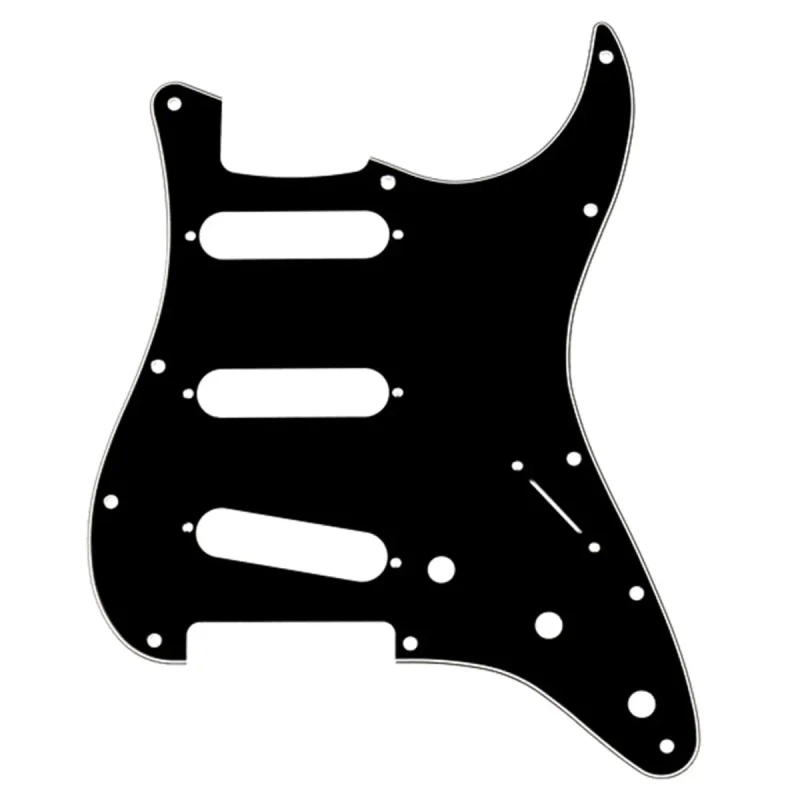

Black - 3 Ply - Modern 11 Hole

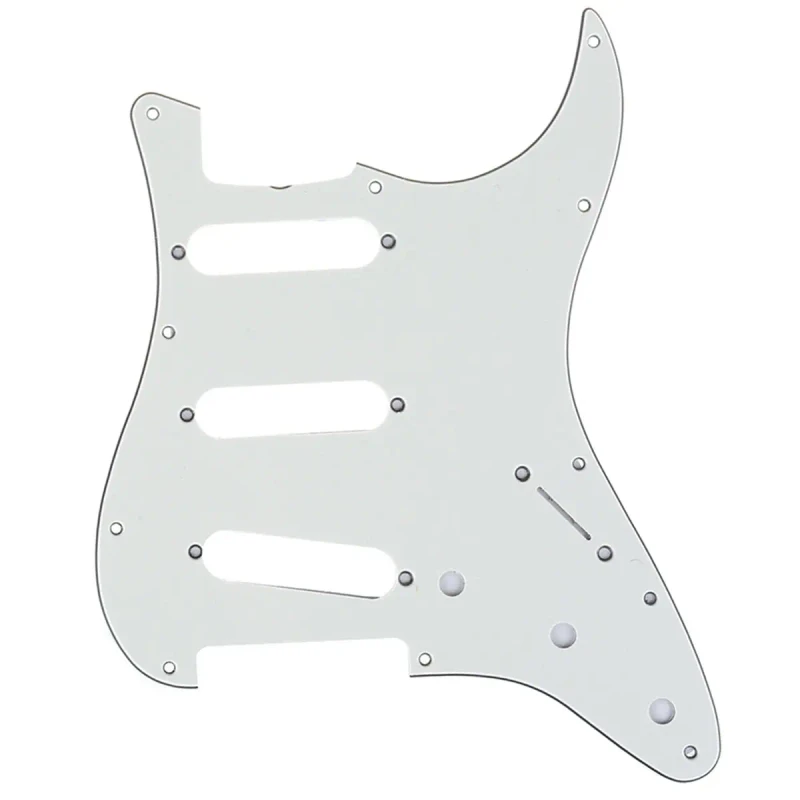

Aged White - 3 Ply - '62 Pattern

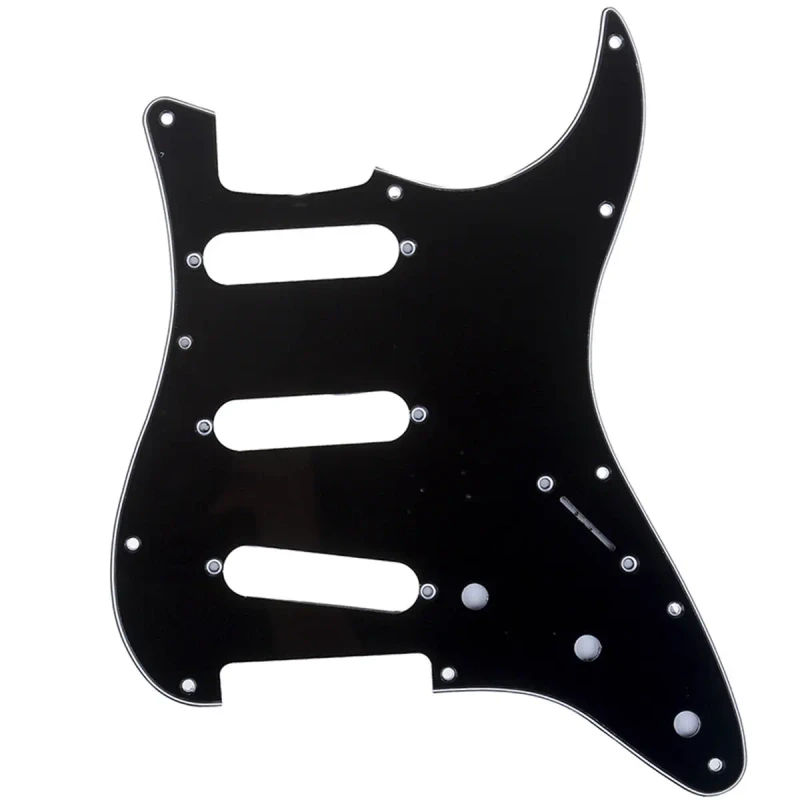

Black - 3 Ply - '62 Pattern

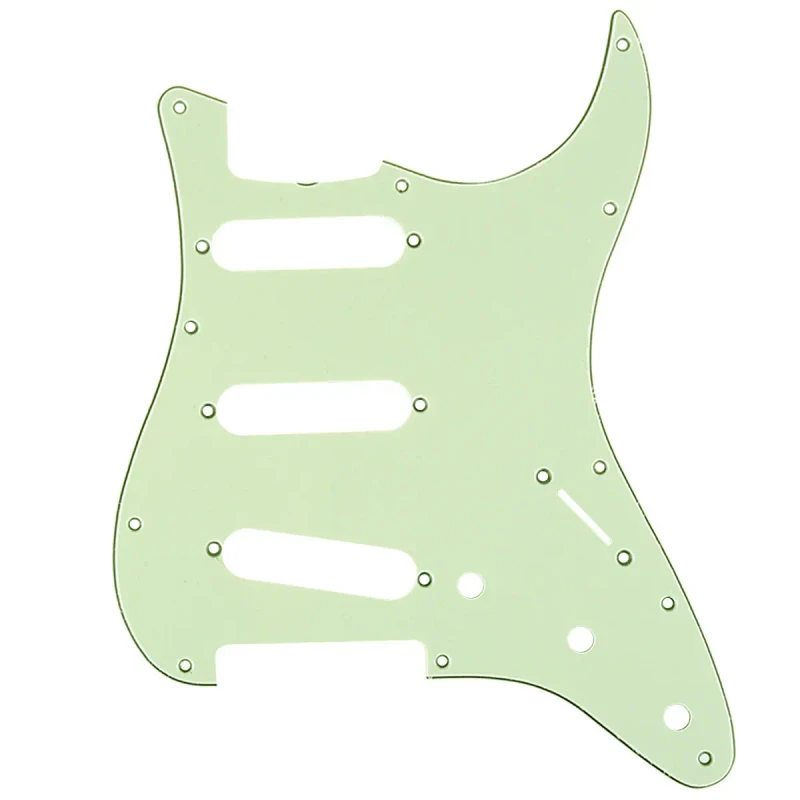

Mint Green - 3 Ply - '62 Pattern
White - Single Ply - '62 Pattern

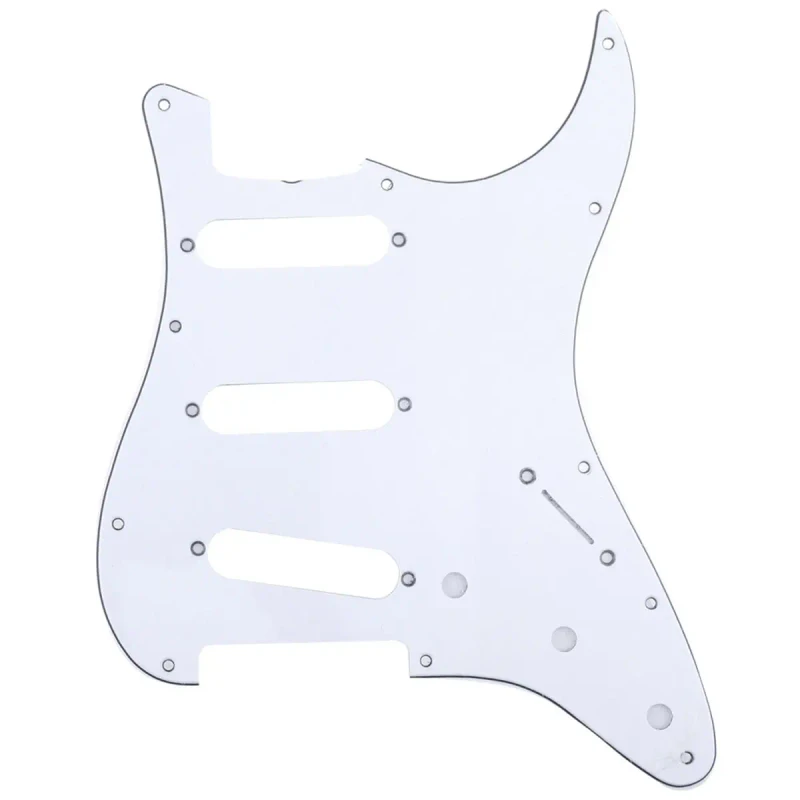

White - 3 Ply - '62 Pattern

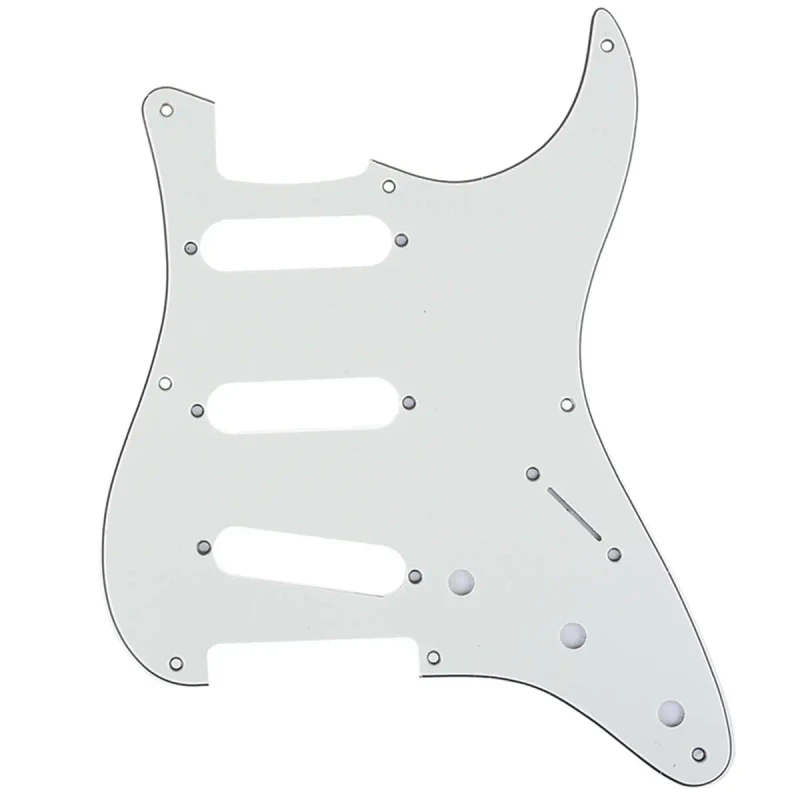

Aged White - 3 Ply - 8 Hole Pattern

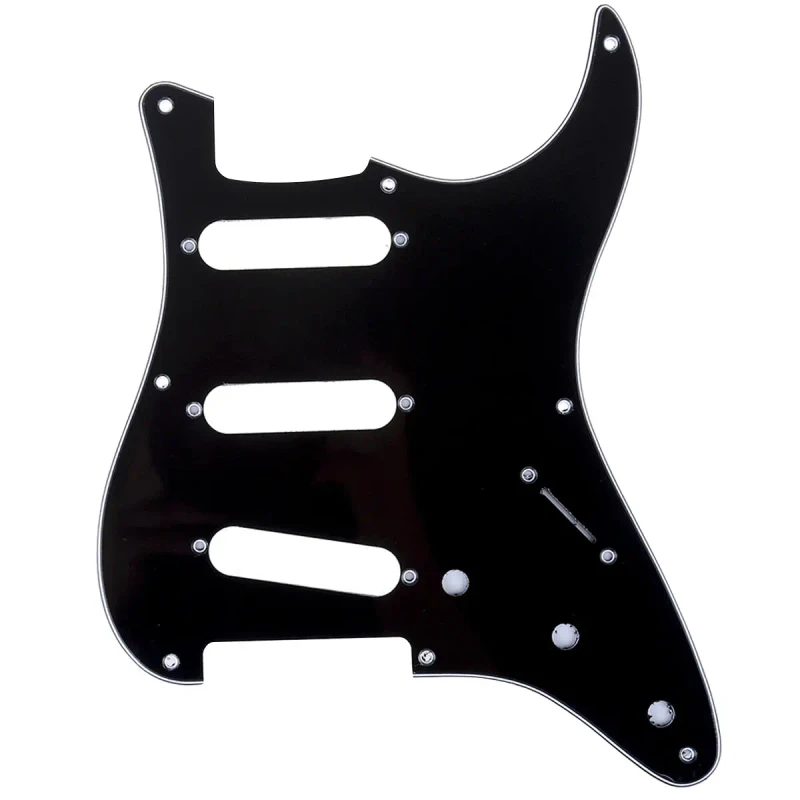

Black - 3 Ply - 8 Hole Pattern

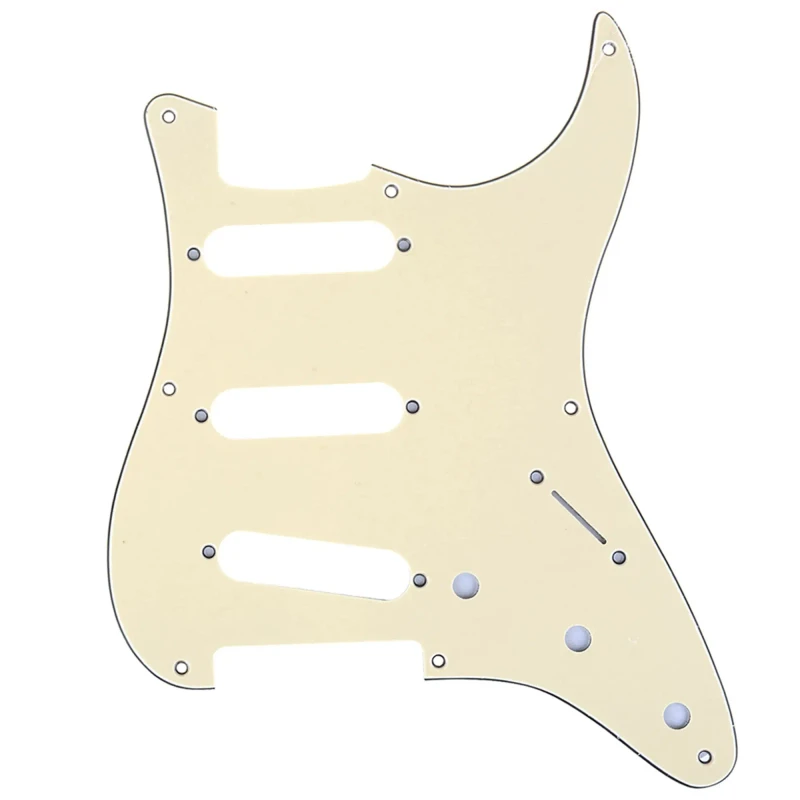

Cream - 3 Ply - 8 Hole Pattern
Mint Green - 3 Ply - 8 Hole Pattern
White - Single Ply - 8 Hole Pattern

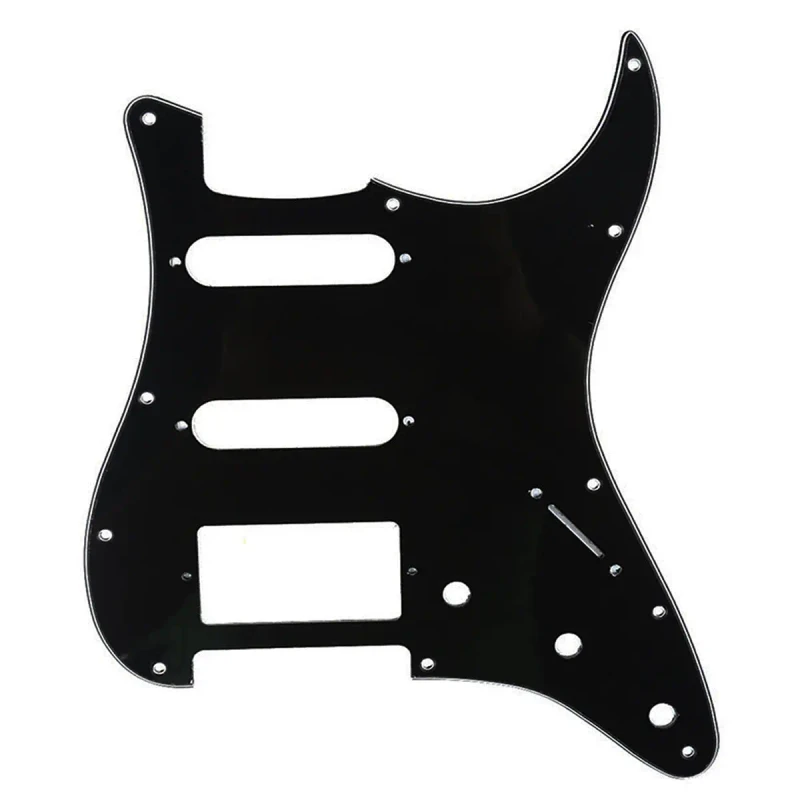

Black - HSS - 3 Ply (humbucker cover may fit, please check with us)

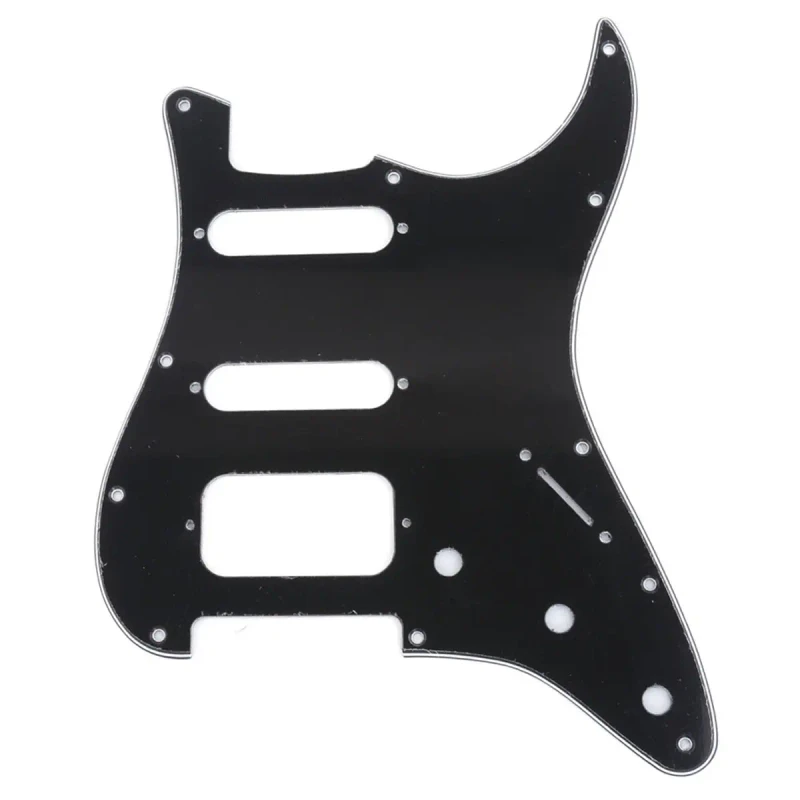

Black - HSS - 3 Ply (No humbucker cover, rounded slot)

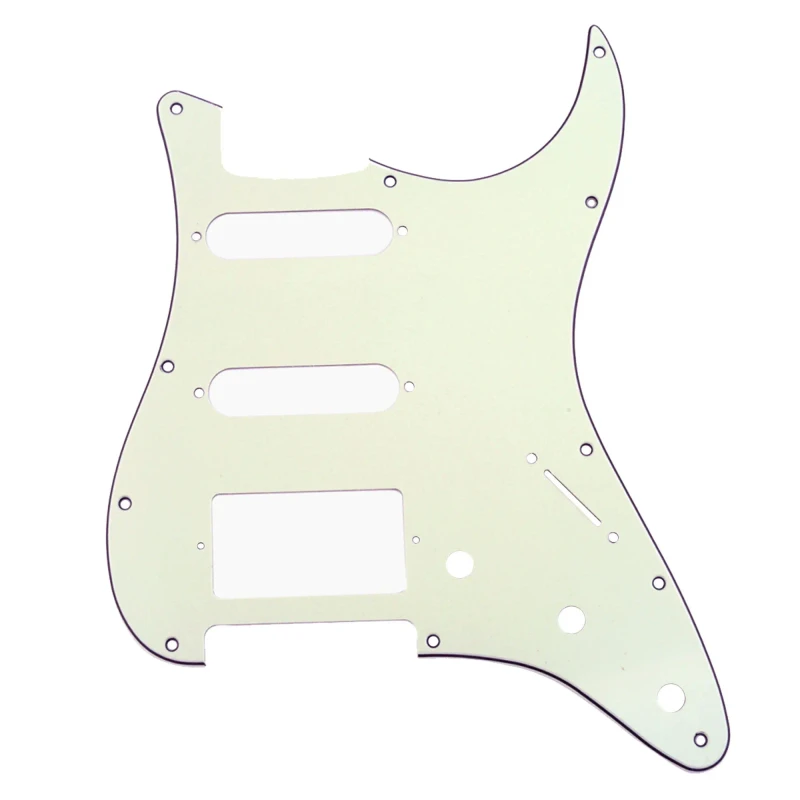

Light Mint Green - HSS - 3 Ply (Humbucker cover may fit, please check with us)

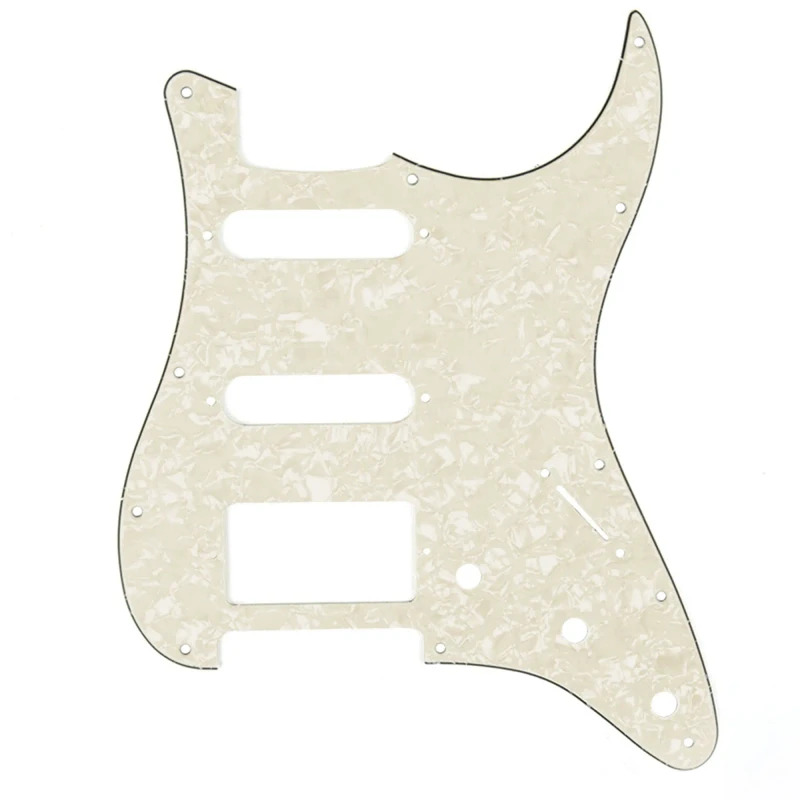

Pearloid - HSS - 3 Ply (Humbucker Cover will fit)

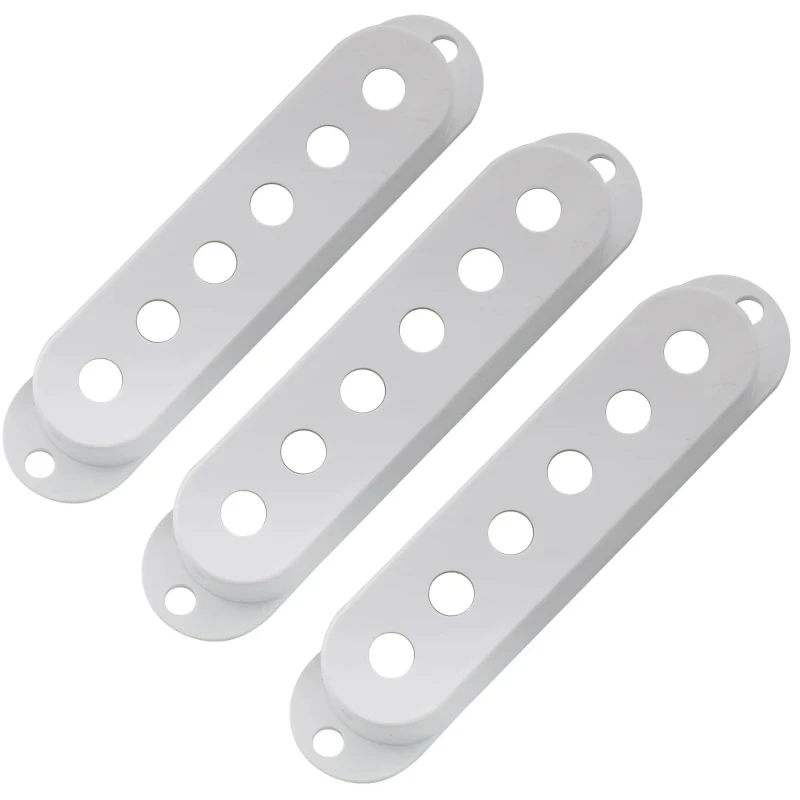

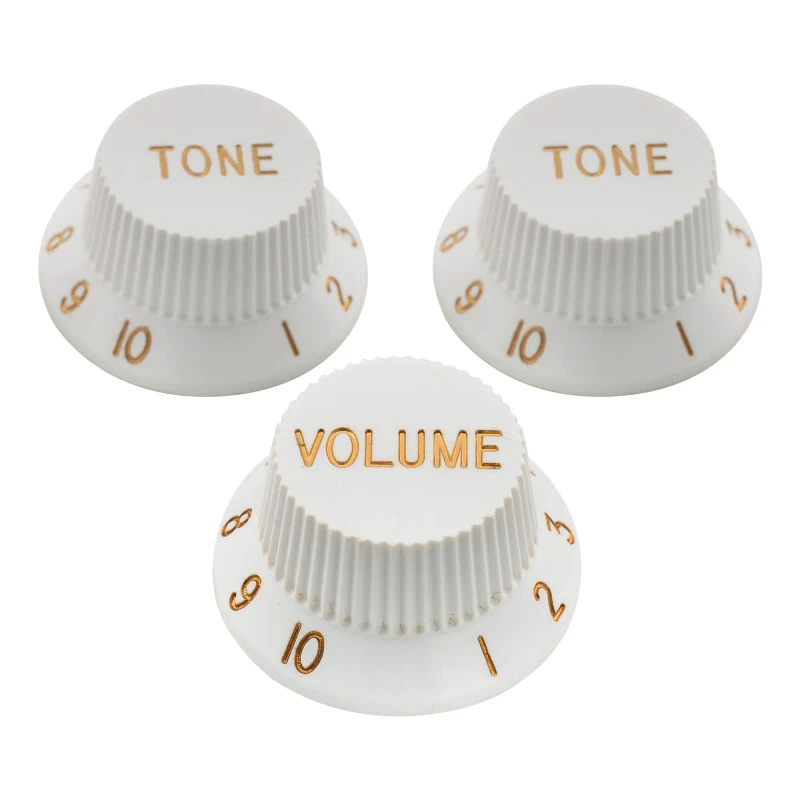

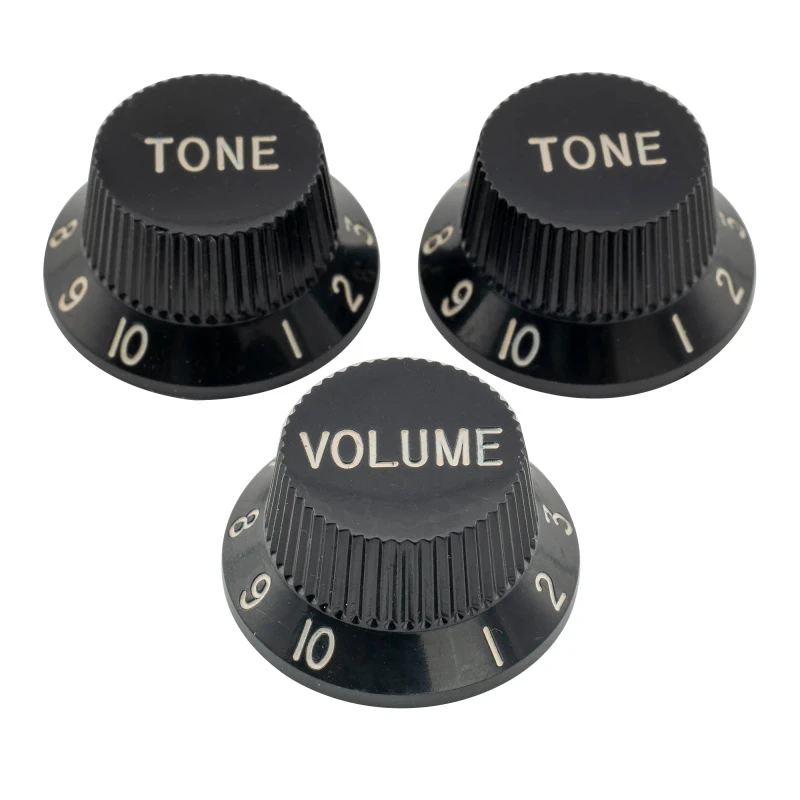

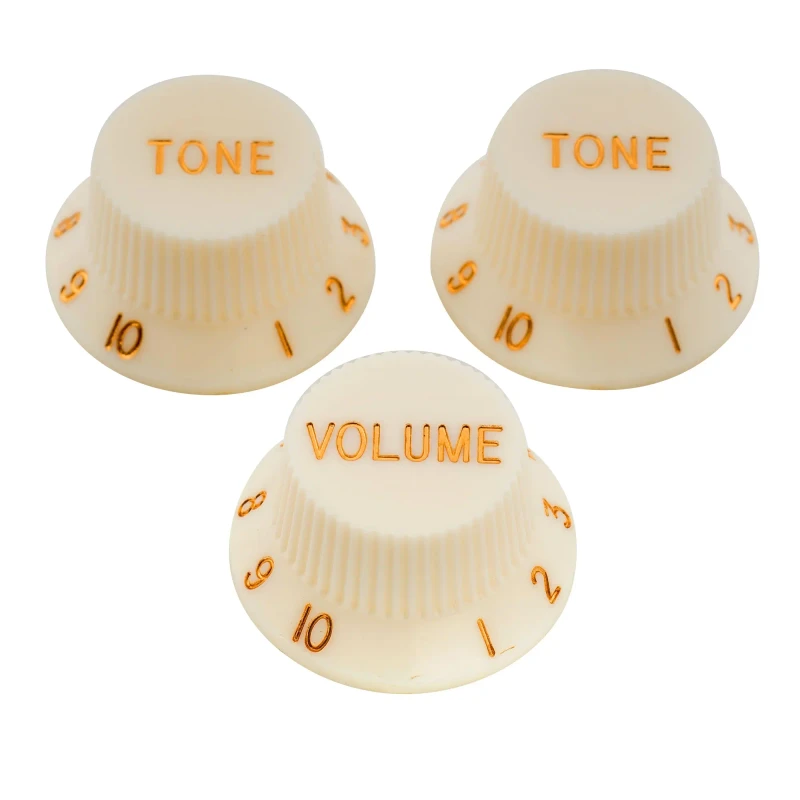

cOVERS, KNOBS & SWITCH TIPS

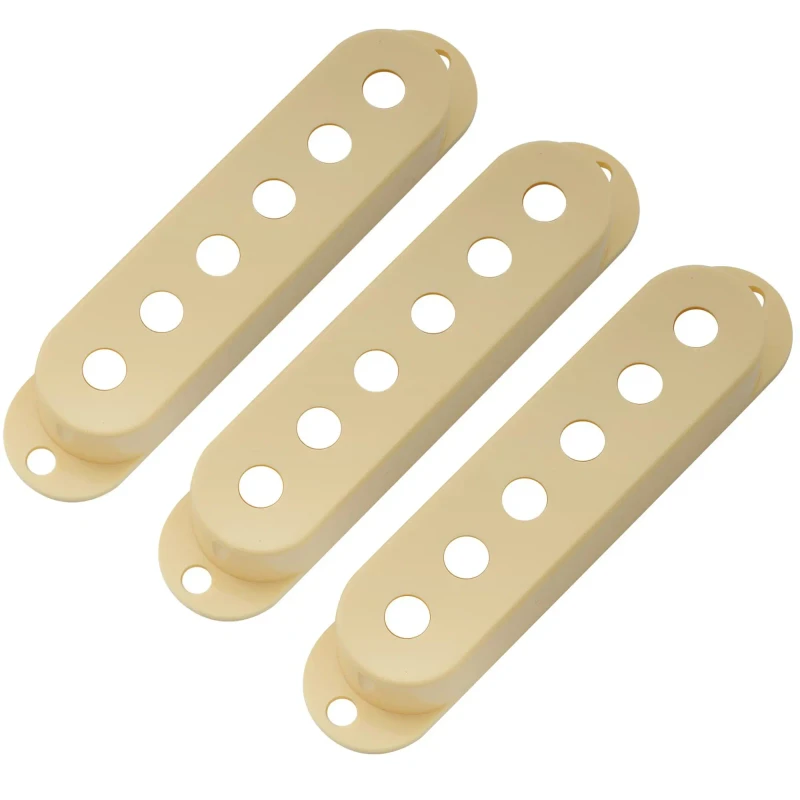

Cream

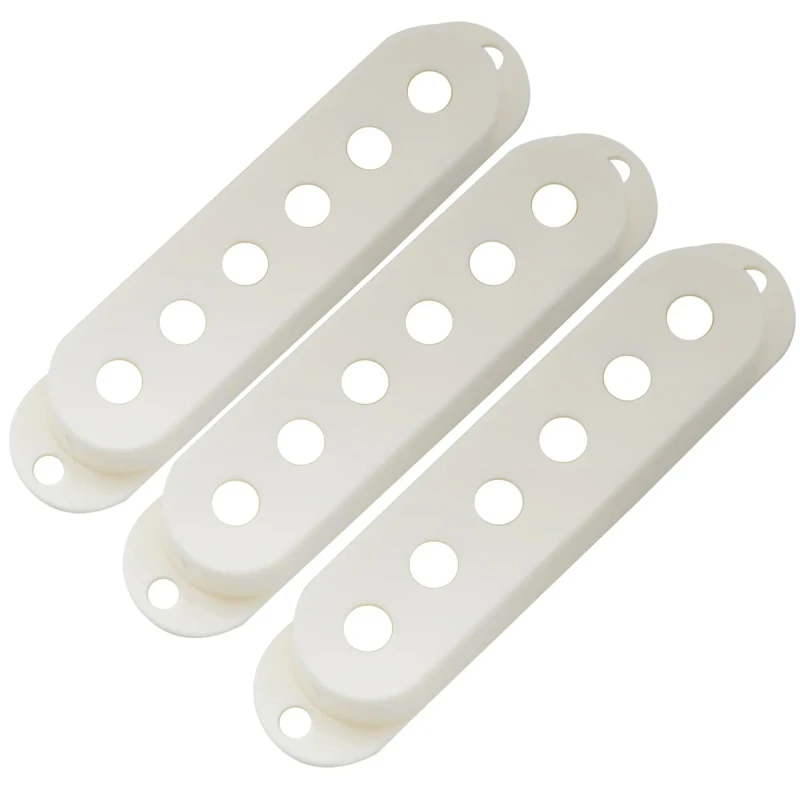

Aged White/Parchment

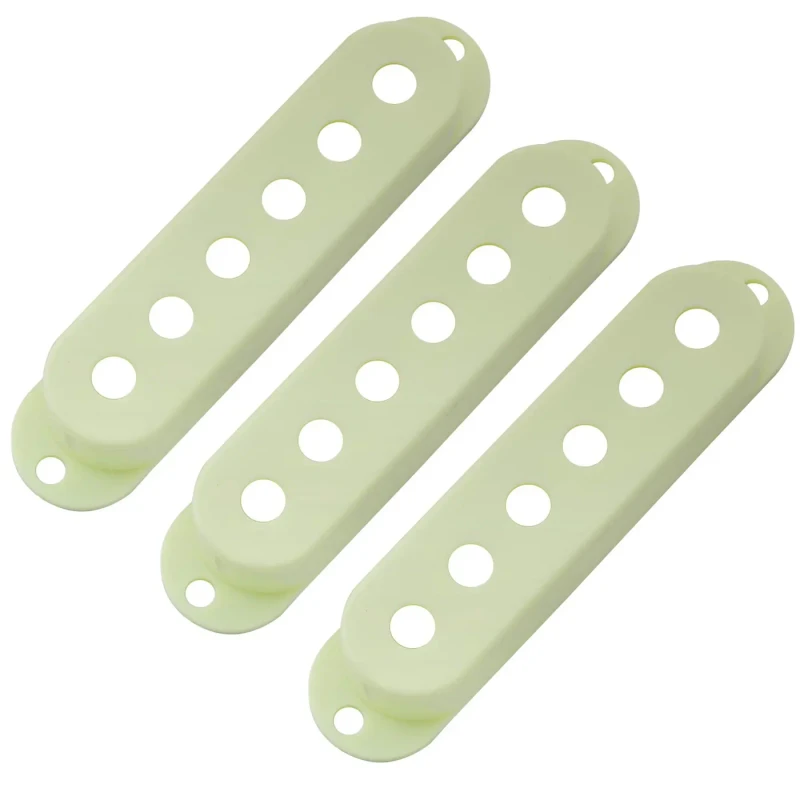

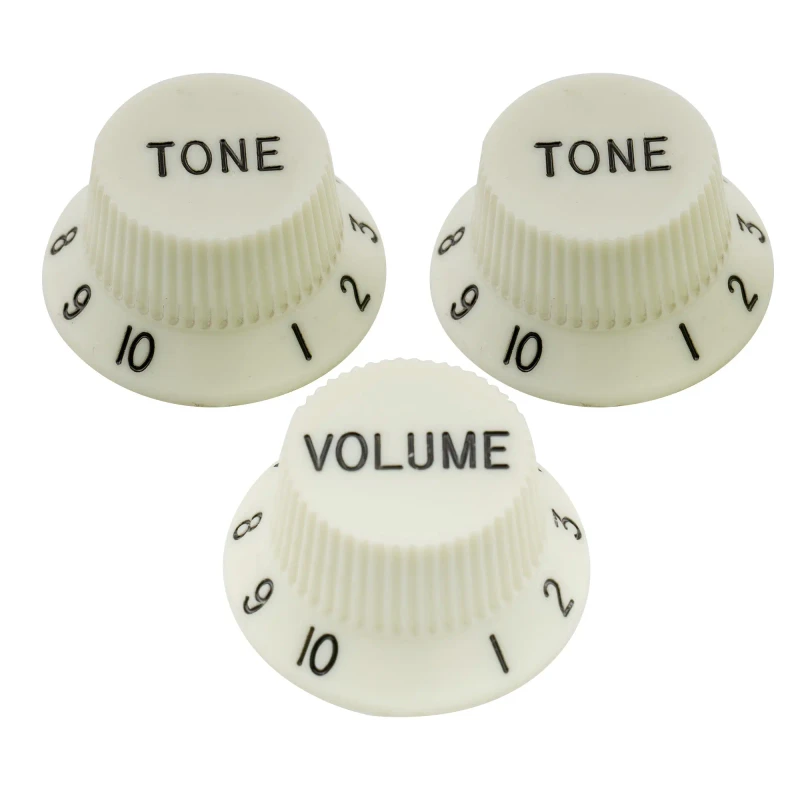

Mint Green
White

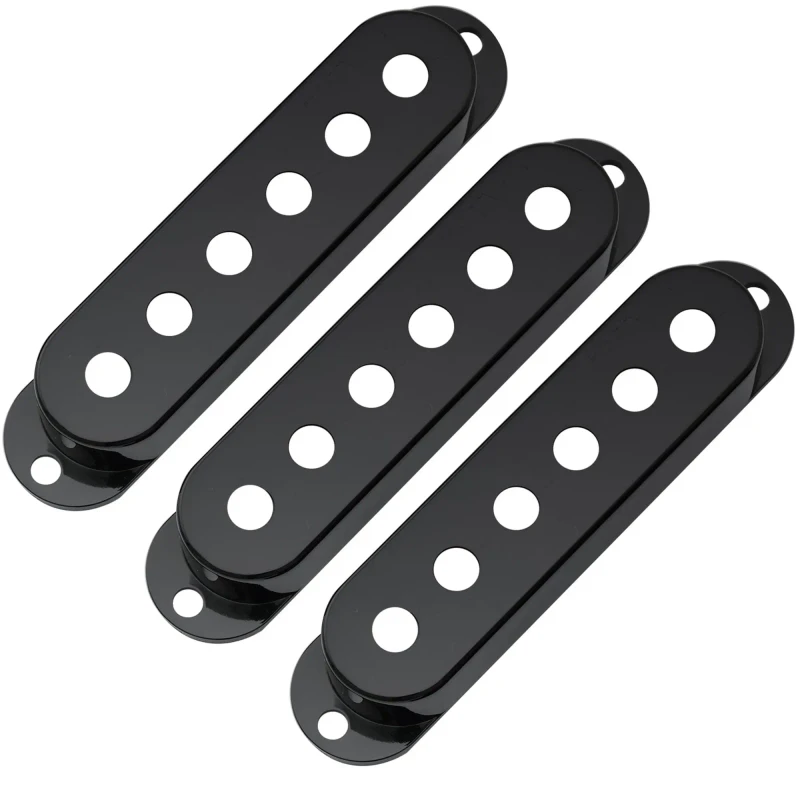

Black

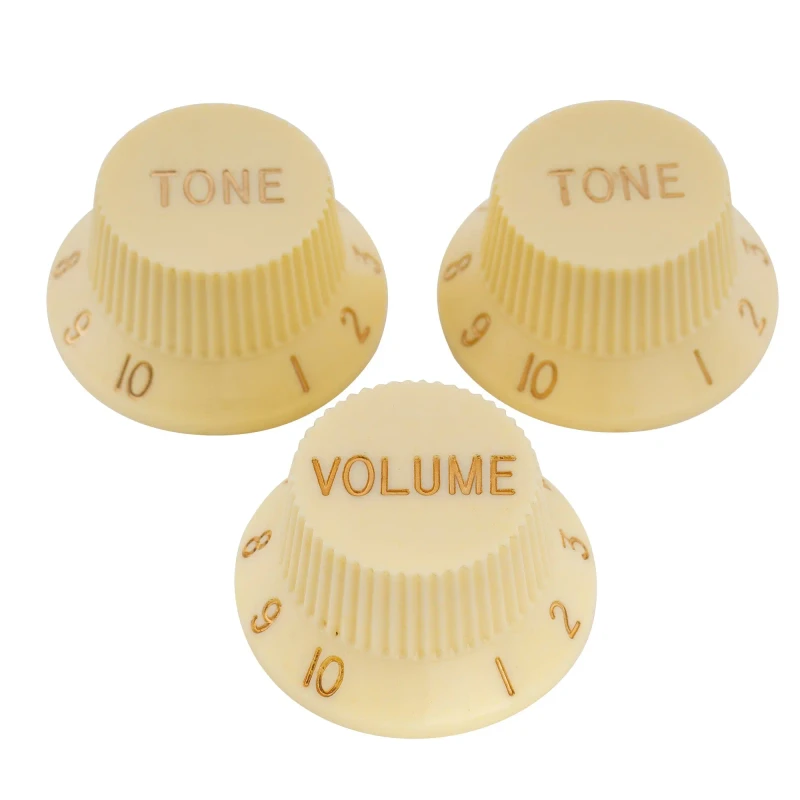

Cream
Aged White/Parchment
Mint Green
Black
White
we use only quality parts

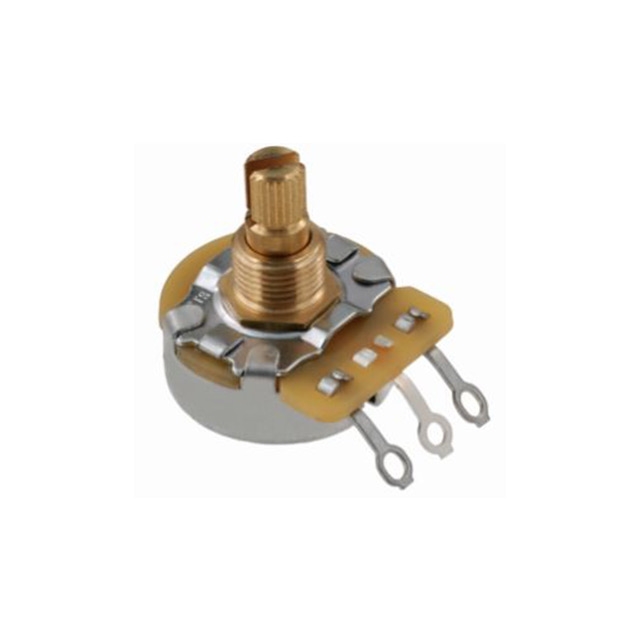

We use only CTS potentiometers. for superior feel, tolerance and durability.
Oak Grigsby 5 way switches, also for superior feel and durability.
Cornell Dubilier "Orange Drop" capacitors, an industry standard since the 1950's with excellent tolerances.

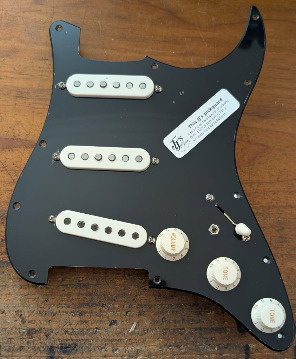

some of our loaded pickguard examples

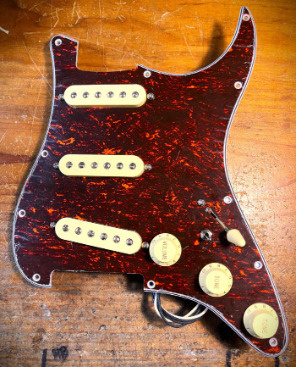

Simulcaster S-90 set - Modern 11 hole in Torty and cream

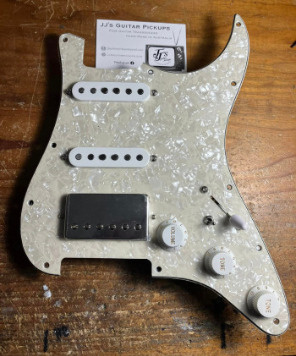

Modern 11 hole in Pearloid HSS

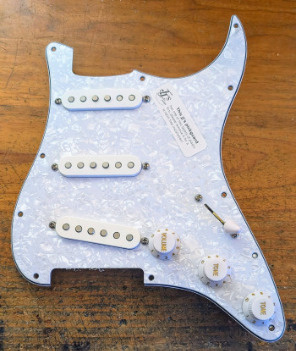

Pearloid white, modern 11 hole
Modern 11 hole V12 in Gilmour Spec
8 hole 50's pattern, Cream SSS

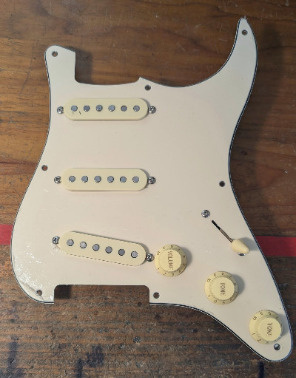

"Aged white/parchment" modern 11 hole

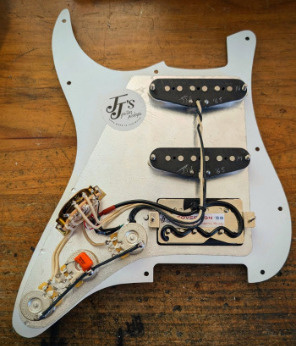

HSS rear, standard

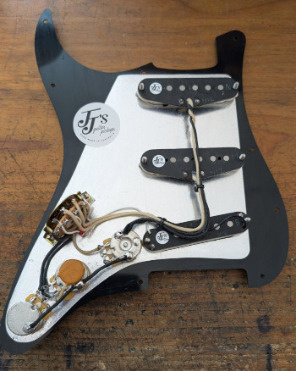

SSS rear (V12, custom)

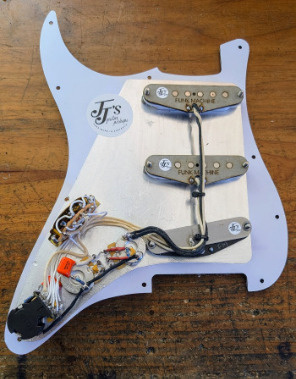

SSS rear, Funk Machine custom loom
Please check out our Facebook page here for regular posts on pickguards we are building for customers.
Hooking up your JJ's Loaded Pickguard
Your loaded Pickguard may come with three wires to solder into your guitar. (If you have existing wiring, we don't add these lead wires)
1 - White, this is the “Hot” wire. It comes from the middle lug on the volume pot and is terminated on the “tip” terminal of the 1⁄4” jack in your guitar
2 - Black, this is the “Ground” wire. It comes from the rear of the volume pot and is terminated on the “sleeve” terminal of the 1⁄4” jack in your guitar.
3 - Another Black, also a “Ground” wire. It also comes from the rear of the volume pot and goes through the guitar body and hooks onto your tremolo claw. This wire is called the “string ground”. (your guitar may also have a ground lug, solder this to the rear of the volume pot also)
If you have any problems, head into email for assistance. We will be happy to talk you through the process and get you Rockin’ in no time!
Please click here for PDF
JJ’s Loaded Pickguard pricing

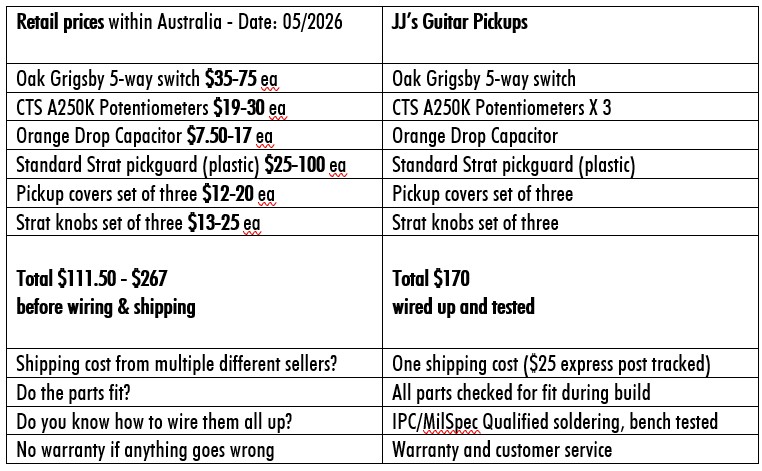

Here we will give you some insight into how we price up our loaded pickguard assemblies. (Example SSS, standard wiring)
We’ve surveyed online retail prices on equivalent, high-quality parts that we use and have made this comparison table. For a high quality, drop-in replacement unit that’s wired up, tested and warrantied, we think our pickguards are a good deal.
Loaded pickguards are available for purchase with your set of JJ's Guitar Pickups.
Prices listed here are in addition to pickup sets.
Pickguard assemblies and parts are not sold separately.
